| Coverage | 2.88m2 |
|---|---|
| Thickness | 15mm |
| Width | 1200mm |
| Length | 2400mm |
| Edging | Tapered Edge |
| Brand | Knauf |
| Product type | Board |
| Application | Ceiling, Walls |
| Features | Acoustic |
| Facing | Plasterboard |
| Material | Gypsum |
| Fire Rating | A2-s1,d0 (B) |
| Thermal conductivity | 0.024 W/mK |
Product Information
Knauf Soundshield Plus is the ideal plasterboard where sound reduction is particularly important. Its high mass and tuned core give an enhanced acoustic performance, excellent fire resistance and severe duty impact rating when used as part of a Knauf Performer, Isolator or Silent Spacesaver partition system.
This multifunctional board enables partition wall performance requirements to be met without the need for secondary products.
When used as part of a Knauf system, Soundshield Plus will give up to 120 minutes of fire protection and up to 54 Db (Rw) acoustic sound reduction. This performance is fully tested and backed with a Knauf System Performance Warranty, providing warranties for the building and peace of mind for the client.
12.5mm – Compliance (to BS EN 520 Classification): Type A & D
15.0mm – Compliance (to BS EN 520 Classification): Type A, D, F & I
Reaction to fire: The National Classification is “Limited combustibility” but the European Classification is rated as “A2”.
Product Features
Application
The combined performance characteristics of the board make it ideal for use in high traffic areas such as schools, corridors and hospitals.
The board should be installed using Knauf Performance Plus screws and can be finished using the full range of Knauf jointing and finishing products including Knauf Airless Finishes.
Soundshield Plus can be recycled with other gypsum products.
There are no questions yet. Be the first to ask a question about this product.
100mm Acoustic Insulation Roll from Knauf is a Glass Mineral Wool roll, designed for use in internal wall and floor applications, to offer sound absorption and noise reduction properties.
| 10+ |
| £55.36 |
Plaster depth 2-3mm. Nail holes for easy fix with drywall nails. Scalloped edge for an excellent plaster key. Internal use only.
| 10+ |
| £16.85 |
GL2 Short Leg Metal Wall Liner Bracket is a part of a metal lining system used for direct fix of gypsum wallboards. The GL2 brackets are used with the GL1 Lining Channels to aid the installation of plasterboard linings, connecting them to masonry walls, timber joists or steel beams.
100mm Celotex GA4100 is a polyisocyanurate (PIR) insulation core with composite aluminium foil facings on both sides. Celotex is a multi-purpose insulation board suitable for use in pitched roofs, ceilings, floors and walls.
Please note: In case Celotex PIR Insulation is not available any longer, we will offer PIR Insulation with equivalent specifications from one of the following manufacturers – Unilin, Ecotherm, Kingspan, Mannok, Recticel or IKO Enertherm.
| 10+ |
| £3.91 |
Antinox Temporary Protection Board is a lightweight, flexible, waterproof and durable plastic sheeting that offers protection to floors and other surfaces. Surface Protection board is manufactured from strong corrugated polypropylene to provide lasting surface protection during construction and refurbishment.
125mu (500 gauge) Clear Damp Proof Membrane (DPM) 4m x 25m is manufactured from high quality recycled polyethylene. The product is usually used in solid concrete ground floors to protect buildings against water from the ground providing an effective barrier against the liquid or water vapour for the lifetime of the concrete slab in which they are installed.
| 10+ |
| £8.95 |

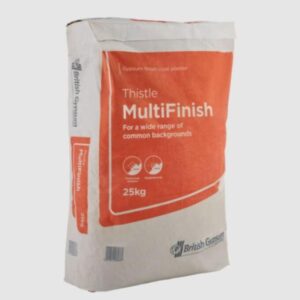

Thistle Multi-Finish is a gypsum finish plaster for use on a wide range of backgrounds. British gypsum thistle multi finish plaster provides a smooth, inert, high-quality surface to internal walls and ceilings, and a durable base for the application of decorative finishes.
